600W单路输出系列 (600W Single Output Standard Series)

l  高可靠性
High reliability

l  内置风扇强制风冷
Forced air cooling by built-in fan

l  100%满负载老化
100% full load burn-in test

l  保护功能:过载/过压/过温度/短路保护
Protections: overload/ over voltage/

over temperature/ short circuit

l  5年保修
5 years limited warranty

l  F650  250 x 160 x 87(mm)

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

60A/230V(冷态时)

60A/230V

输入漏电流

Input leakage current

<1mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

110~130%, 恒流限制, 异常条件移除后可自动恢复

110~130%, current limiting, auto recovery

输出过压保护

Output over voltage protection

115~150%, 关闭输出电压, 重启后可恢复

115~150%, shut off, re-power on to recover

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作温度

Operating temperature

-20℃~+50℃

安规标准

Safety standards

设计参照(design refer to) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计参照(design refer to) GB9254, EN55022 classA

冷却形式

Cooling method

风冷

fan

装箱方式

Packing

2.8~3.0kg/台, 6台/箱

2.8~3.0kg/pcs, 6pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF600W-S-24

24V 25.0A

0.5%

150mV

86%

Drawing

1000W单路输出系列 1000W Single Output Standard Series)

l  高可靠性
High reliability

l  内置风扇强制风冷
Forced air cooling by built-in fan

l  100%满负载老化
100% full load burn-in test

l  保护功能:过载/过压/过温度/短路保护
Protections: overload/ over voltage/

over temperature/ short circuit

l  5年保修
5 years limited warranty

l  F650  250 x 160 x 87(mm)

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

60A/230V(冷态时)

60A/230V

输入漏电流

Input leakage current

<1mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

110~130%, 恒流限制, 异常条件移除后可自动恢复

110~130%, current limiting, auto recovery

输出过压保护

Output over voltage protection

115~150%, 关闭输出电压, 重启后可恢复

115~150%, shut off, re-power on to recover

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作温度

Operating temperature

-20℃~+50℃

安规标准

Safety standards

设计参照(design refer to) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计参照(design refer to) GB9254, EN55022 classA

冷却形式

Cooling method

风冷

fan

装箱方式

Packing

2.8~3.0kg/台, 6台/箱

2.8~3.0kg/pcs, 6pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF1000W-S-24

24V 42.0A

0.5%

150mV

84%

Drawing

800W单路输出系列 (800W Single Output Standard Series)

l  高可靠性
High reliability

l  内置风扇强制风冷
Forced air cooling by built-in fan

l  100%满负载老化
100% full load burn-in test

l  保护功能:过载/过压/过温度/短路保护
Protections: overload/ over voltage/

over temperature/ short circuit

l  5年保修
5 years limited warranty

l  F650  250 x 160 x 87(mm)

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

60A/230V(冷态时)

60A/230V

输入漏电流

Input leakage current

<1mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

110~130%, 恒流限制, 异常条件移除后可自动恢复

110~130%, current limiting, auto recovery

输出过压保护

Output over voltage protection

115~150%, 关闭输出电压, 重启后可恢复

115~150%, shut off, re-power on to recover

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作温度

Operating temperature

-20℃~+50℃

安规标准

Safety standards

设计参照(design refer to) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计参照(design refer to) GB9254, EN55022 classA

冷却形式

Cooling method

风冷

fan

装箱方式

Packing

2.8~3.0kg/台, 6台/箱

2.8~3.0kg/pcs, 6pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF800W-S-24

24V 33.0A

0.5%

150mV

84%

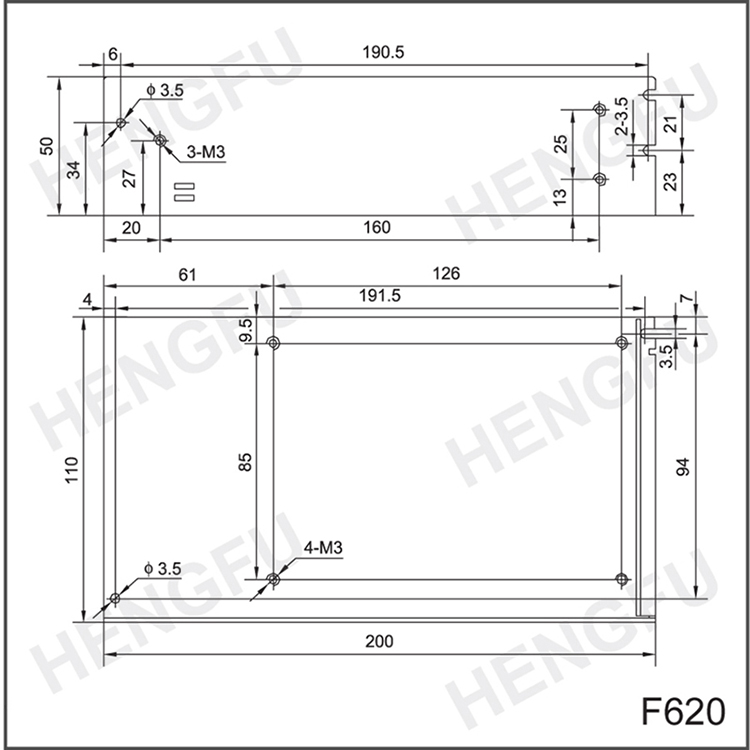

Drawing

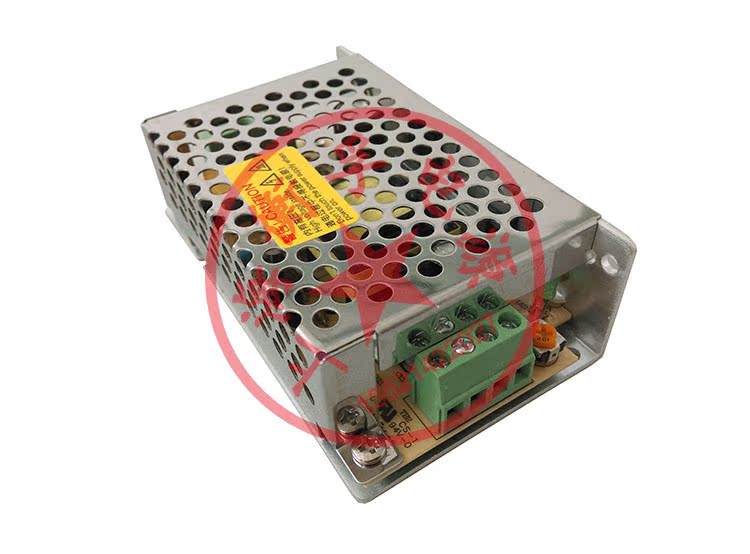

l  低成本,高性价比
Low cost, competitive price

l  高可靠性
High reliability

l  小体积,高功率密度
Small size, high power density

l  内置式EMI滤波器
Built-in EMI filter

l  F601  100 x 58 x 31(mm)

l  100% 满负载老化
100% full load burn-in test

l  保护功能:过载/短路保护
Protections: overload/ short circuit

l  自然冷却
Free air cooling convection

l  2年保修
2 years warranty

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

cold start, 40A/230V

40A/230V(冷态时)

输入漏电流

Input leakage current

<0.7mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

105~150%, hiccup mode, auto recovery

105~150%, 打嗝模式, 异常条件移除后可自动恢复

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作环境

Operating temperature

-20℃~+70℃ (请参考减额曲线)

-20℃~+70℃ (refer to the derating curve)

安规标准

Safety standards

设计符合(design meet) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计符合(design meet) GB9254, EN55022 classA

冷却形式

Cooling method

自然冷却

convection

装箱方式

Packing

0.15kg/台, 99台/箱

0.15kg/pcs, 99pcs/CTN

Drawing

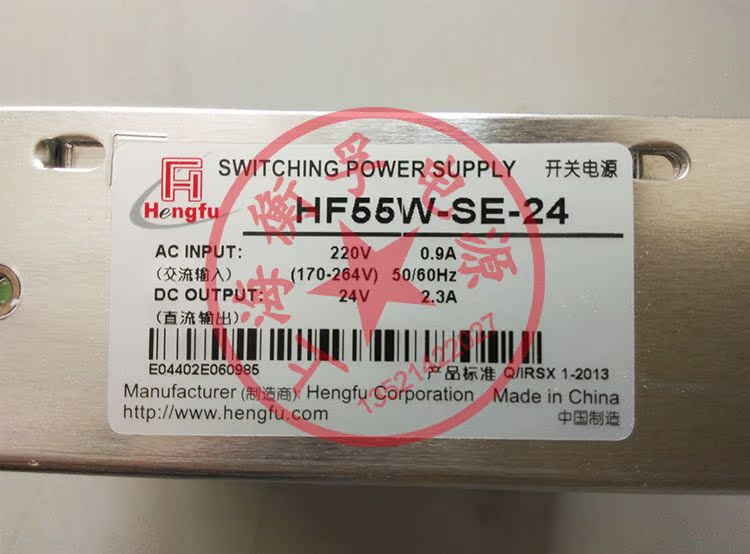

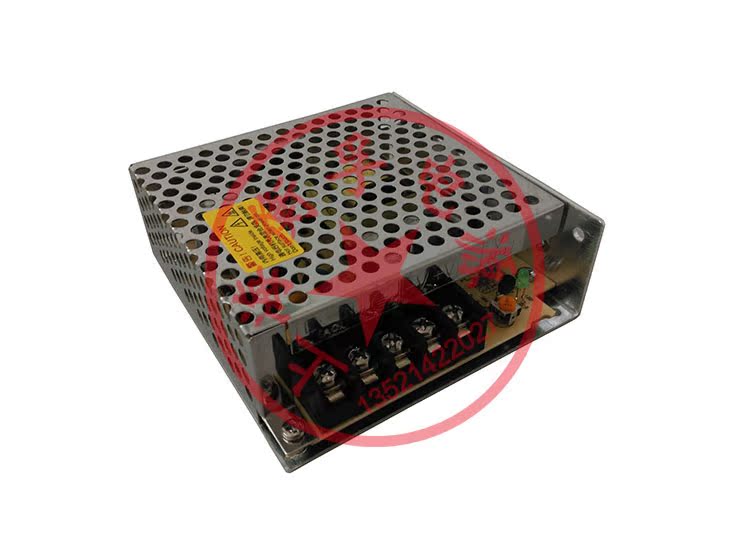

l  低成本,高性价比
Low cost, competitive price

l  高可靠性
High reliability

l  小体积,高功率密度
Small size, high power density

l  内置式EMI滤波器
Built-in EMI filter

l  F6055SE  99 x 97 x 36(mm)

l  100% 满负载老化
100% full load burn-in test

l  保护功能:过载/短路保护
Protections: overload/ short circuit

l  自然冷却
Free air cooling convection

l  2年保修
2 years warranty

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

cold start, 40A/230V

40A/230V(冷态时)

输入漏电流

Input leakage current

<0.7mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

105~150%, 打嗝模式, 异常条件移除后可自动恢复

105~150%, hiccup mode, auto recovery

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作环境

Operating temperature

-20℃~+70℃ (请参考减额曲线)

-20℃~+70℃ (refer to the derating curve)

安规标准

Safety standards

设计符合(design meet) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计符合(design meet) GB9254, EN55022 classA

冷却形式

Cooling method

自然冷却

convection

装箱方式

Packing

0.27kg/台, 42台/箱

0.27kg/pcs, 42pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF55W-SE-24

24V 2.3A

0.5%

150mV

83%

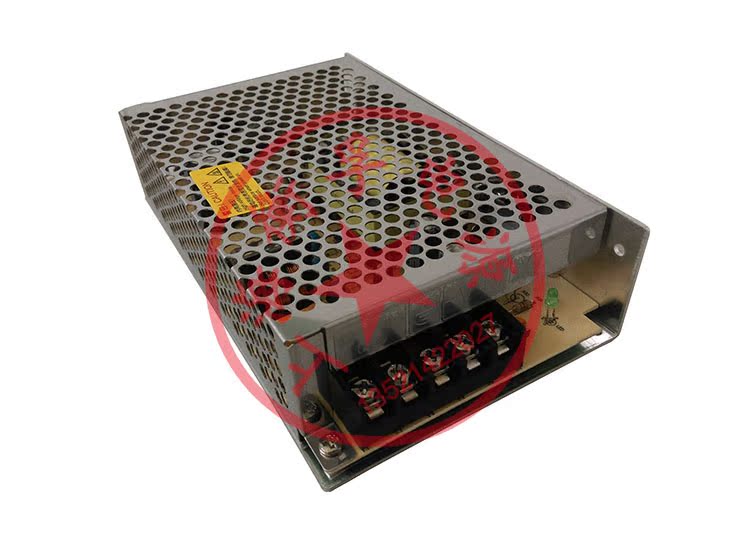

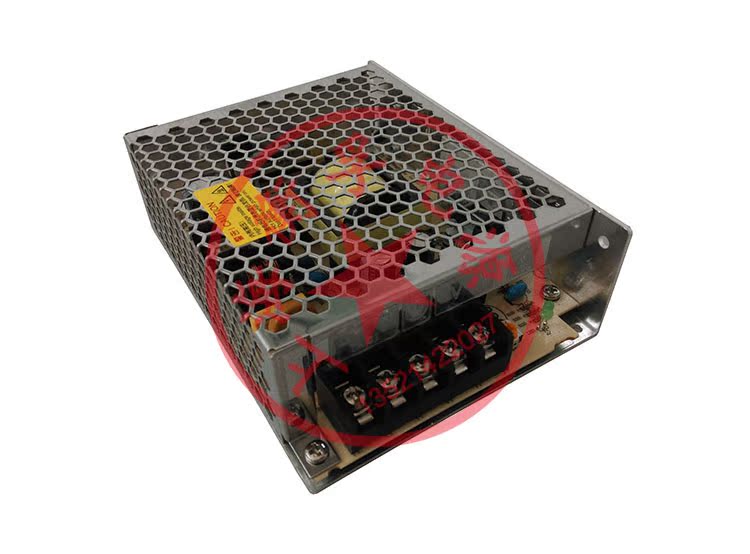

l  低成本,高性价比
Low cost, competitive price

l  高可靠性
High reliability

l  小体积,高功率密度
Small size, high power density

l  内置式EMI滤波器
Built-in EMI filter

l  F603  129 x 98 x 40(mm)

l  100% 满负载老化
100% full load burn-in test

l  保护功能:过载/短路保护
Protections: overload/ short circuit

l  自然冷却
Free air cooling convection

l  2年保修
2 years warranty

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

40A/230V(冷态时)

cold start, 40A/230V

输入漏电流

Input leakage current

<0.7mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

105~150%, 打嗝模式, 异常条件移除后可自动恢复

105~150%, hiccup mode, auto recovery

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作环境

Operating temperature

-20℃~+70℃ (请参考减额曲线)

-20℃~+70℃ (refer to the derating curve)

安规标准

Safety standards

设计符合(design meet) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计符合(design meet) GB9254, EN55022 classA

冷却形式

Cooling method

自然冷却

convection

装箱方式

Packing

0.38kg/台, 42台/箱

0.38kg/pcs, 42pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF75W-SE-24

24V 3.0A

0.5%

150mV

84%

Drawing

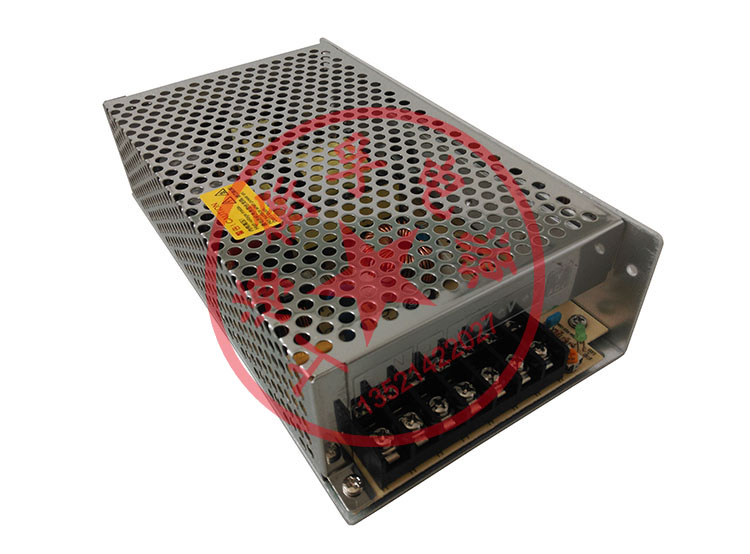

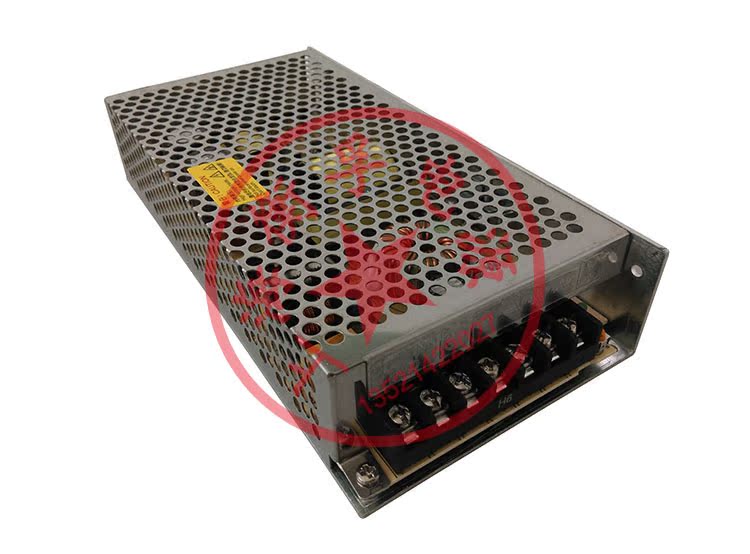

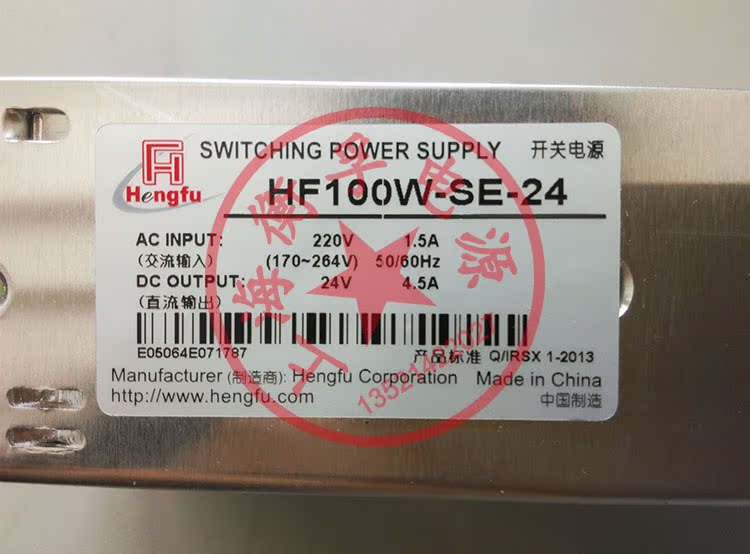

l  低成本,高性价比
Low cost, competitive price

l  高可靠性
High reliability

l  小体积,高功率密度
Small size, high power density

l  内置式EMI滤波器
Built-in EMI filter

l  F605  160 x 98 x 39(mm)

l  100% 满负载老化
100% full load burn-in test

l  保护功能:过载/短路保护
Protections: overload/ short circuit

l  自然冷却
Free air cooling convection

l  2年保修
2 years warranty

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

40A/230V(冷态时)

cold start, 40A/230V

输入漏电流

Input leakage current

<0.7mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

105~150%, 打嗝模式, 异常条件移除后可自动恢复

105~150%, hiccup mode, auto recovery

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作环境

Operating temperature

-20℃~+70℃ (请参考减额曲线)

-20℃~+70℃ (refer to the derating curve)

安规标准

Safety standards

设计符合(design meet) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计符合(design meet) GB9254, EN55022 classA

冷却形式

Cooling method

自然冷却

convection

装箱方式

Packing

0.43kg/台, 36台/箱

0.43kg/pcs, 36pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF100W-SE-24

24V 4.5A

0.5%

150mV

83%

Drawing

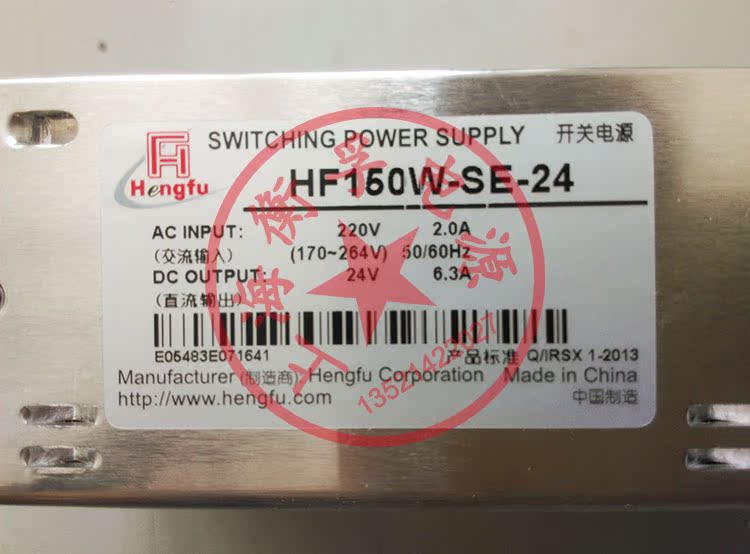

l  低成本,高性价比
Low cost, competitive price

l  高可靠性
High reliability

l  小体积,高功率密度
Small size, high power density

l  内置式EMI滤波器
Built-in EMI filter

l  F610  199 x 98 x 39(mm)

l  100% 满负载老化
100% full load burn-in test

l  保护功能:过载/短路保护
Protections: overload/ short circuit

l  自然冷却
Free air cooling convection

l  2年保修
2 years warranty

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

40A/230V(冷态时)

cold start, 40A/230V

输入漏电流

Input leakage current

<0.7mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

110~130%, 关闭输出, 电源重启后可恢复正常输出

110~130%, shut off, re-power on to recover

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作环境

Operating temperature

-20℃~+70℃ (请参考减额曲线)

-20℃~+70℃ (refer to the derating curve)

安规标准

Safety standards

设计符合(design meet) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计符合(design meet) GB9254, EN55022 classA

冷却形式

Cooling method

自然冷却

convection

装箱方式

Packing

0.59kg/台, 28台/箱

0.59kg/pcs, 28pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF150W-SE-24

24V 6.3A

0.5%

150mV

85%

Drawing

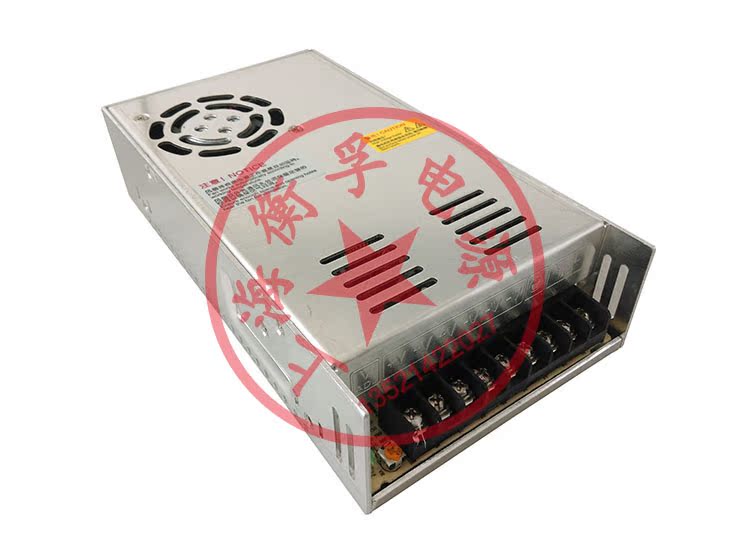

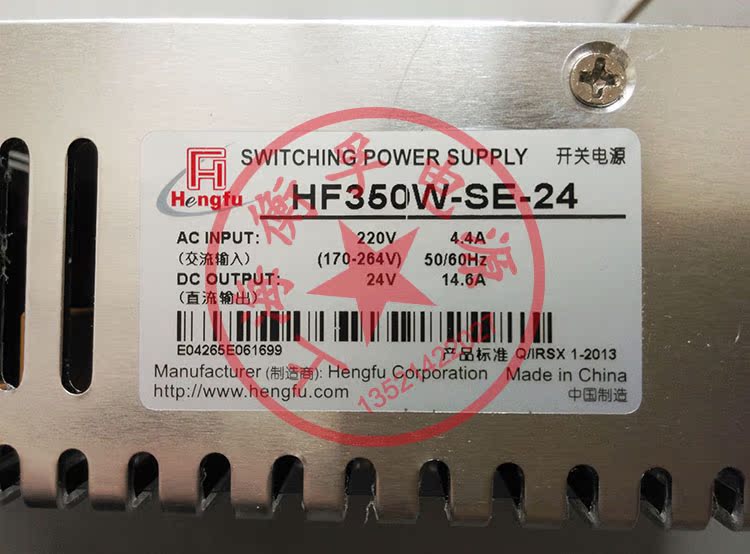

l  低成本,高性价比
Low cost, competitive price

l  高可靠性
High reliability

l  小体积,高功率密度
Small size, high power density

l  内置式EMI滤波器
Built-in EMI filter

l  F635SE  215 x 115 x 50(mm)

l  100% 满负载老化
100% full load burn-in test

l  保护功能:过载/短路保护
Protections: overload/ short circuit

l  风冷
Cooled by fan

l  2年保修
2 years warranty

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

60A/230V(冷态时)

cold start, 60A/230V

输入漏电流

Input leakage current

<0.7mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

110~130%, 关闭输出, 电源重启后可恢复正常输出

110~130%, shut off, re-power on to recover

输出电压可调范围

Output over voltage protection

115~150%, 关闭输出, 电源重启后可恢复正常输出

115~150%, shut off, re-power on to recover

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作环境

Operating temperature

-20℃~+70℃ (请参考减额曲线)

-20℃~+70℃ (refer to the derating curve)

安规标准

Safety standards

设计符合(design meet) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计符合(design meet) GB9254, EN55022 classA

冷却形式

Cooling method

风冷

fan

装箱方式

Packing

0.89kg/台, 20台/箱

0.89kg/pcs, 20pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF350W-SE-24

24V 14.6A

0.5%

150mV

84%

l  高可靠性,高性价比
High reliability, low cost

l  内置式EMI滤波器
Built-in EMI filter

l  100% 满负载老化
100% full load burn-in test

l  保护功能:过载/短路保护
Protections: overload/ short circuit

l  5年保修
5 years limited warranty

l  F620  200 x 110 x 50(mm)

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

交流输入频率

Input frequency

47~63Hz

输入启动冲击电流

Inrush current

40A/230V(冷态时)

cold start, 40A/230V

输入漏电流

Input leakage current

<0.7mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

输出电压可调范围

Output voltage adjust range

±10%

输出过载保护

Output overload protection

110~130%, 关闭输出电压, 重启后可恢复

110~130%, shut off, re-power on to recover

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作温度

Operating temperature

-20℃~+50℃

安规标准

Safety standards

设计参照(design meet) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计参照(design meet) GB9254, EN55022 classA

冷却形式

Cooling method

自然冷却

convection

装箱方式

Packing

0.83kg/台, 20台/箱

0.83kg/pcs, 20pcs/CTN

型 号

Model

直流输出

DC Output

负载调整率

Load regul.

纹 波

R&N

效 率

Efficiency

HF200W-S-24

24V 10.0A

0.5%

150mV

85%

Drawing
