1. GENERAL DESCRIPTION
1.1 OVERVIEW
G104X1- L04 is a 10.4” TFT Liquid Crystal Display module with LED backlight unit and 30-pin-and-1ch
LVDS interface. This product supports 1024 x 768 XGA format and can display true 16.2M colors (6-bits
colors with FRC). The converter module for LED backlight is built-in.

1.2 FEATURES

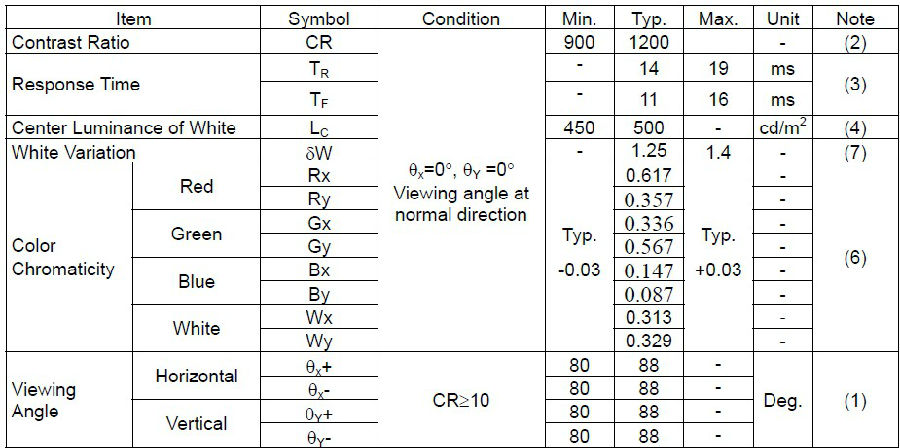

- Excellent brightness (500 nits)
- Ultra high contrast ratio (1200:1)
- Fast response time (Ton+Toff average 25 ms)
- High color saturation NTSC 57%
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- Ultra wide viewing angle: 176(H)/ 176(V) (CR>10) Super MVA technology
-180 degree rotation display option
-LED Light Bar Replaceable

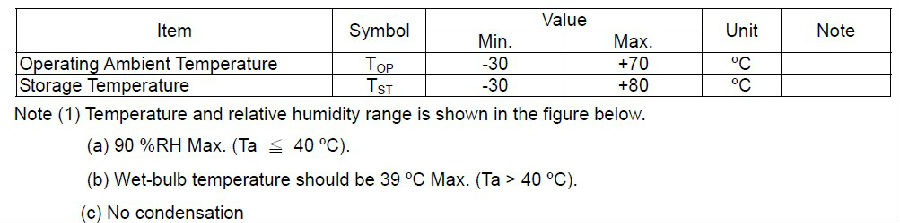

-Wide operation temperature
1.3 APPLICATION
-TFT LCD monitor
- Industrial applications

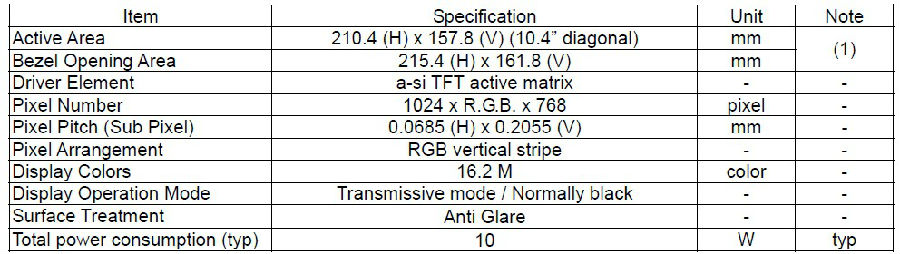

1.4 GENERAL SPECIFICATI0NS
Active Area :210.4 (H) x 157.8 (V) (10.4” diagonal) mm
Bezel Opening Area :215.4 (H) x 161.8 (V) mm
Driver Element :a-si TFT active matrix
Pixel Number :1024 x R.G.B. x 768 pixel
Pixel Pitch (Sub Pixel) :0.0685 (H) x 0.2055 (V) mm
Pixel Arrangement :RGB vertical stripe
Display Colors :16.2 M color
Display Operation Mode
Transmissive mode / Normally black
Surface Treatment :Anti Glare
Total power consumption (typ) :10 W
