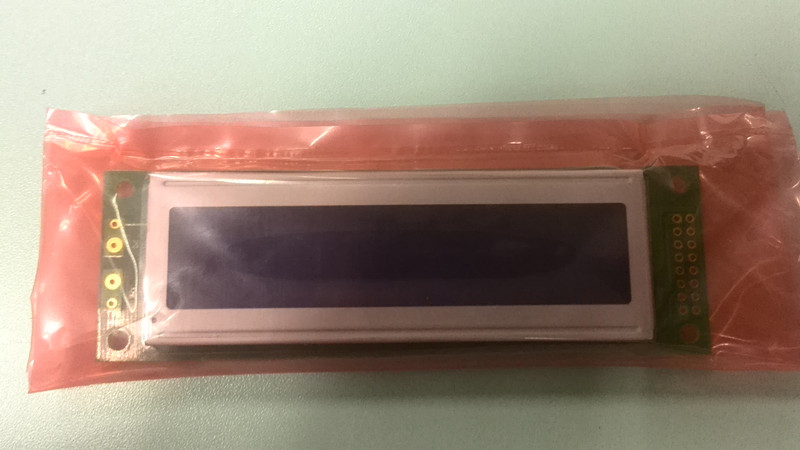

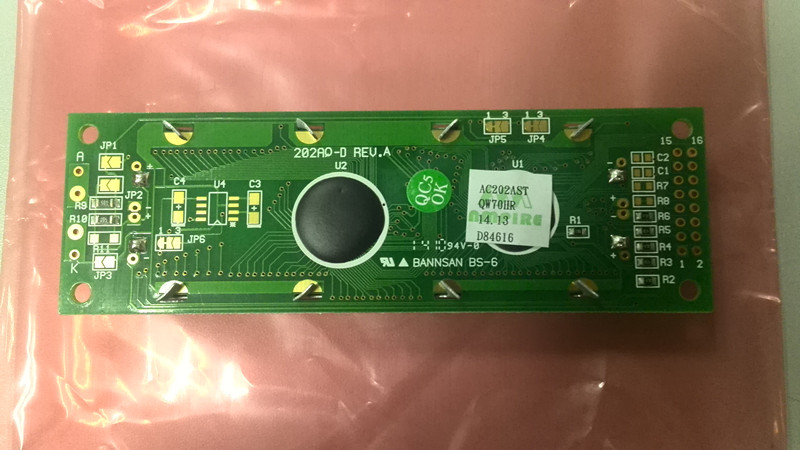

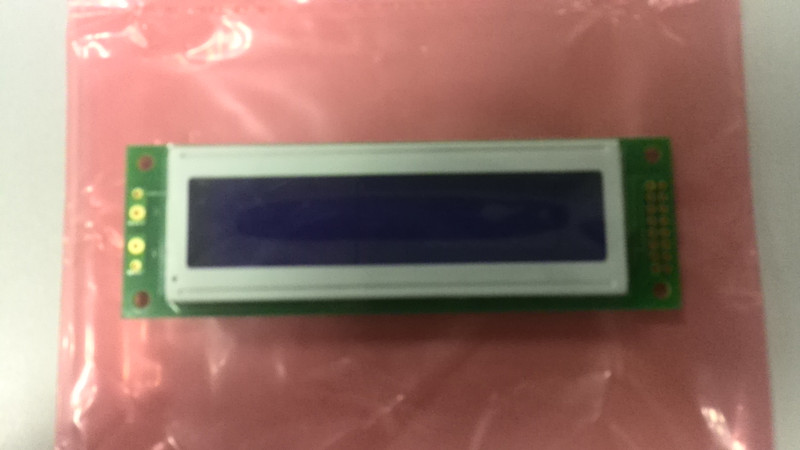

1 FEATURES
(1) Display format : 20 characters  2 lines
(2) Construction : STN LCD panel, Bezel, Zebra, White LED back-light and PCB.
(3) Display type : STN, negative, 6 o’clock view
(4) Controller : ST7066U or Equivalent.
(5) 5V single power input.
(6) Extended temperature type.
(7) Excellent LC : VOP maintains at 5V for whole temp. range, no need extra temp.
compensation circuit.


2 MECHANICAL DATA
Dot size  :0.60(W)×0.65(H) mm
Dot pitch  :0.65(W)×0.70(H) mm
Character size  :3.20(W)×5.55(H)
mm Viewing area  :83.0(W)×18.5(H) mm
Module size(LED back-light) :108.0(W) ×37.0(H) ×14.5max (T) mm

1 FEATURES
(1)
Display format : 240  128 dot-matrix ; 1/ 128 duty.
(2)
Construction : STN LCD, Bezel, Zebra ,Heat Seal, white LED back-light and PCB.
(3)
Display Type : STN , Negative , Blue mode , 6 o’clock view.
(4)
Built in controller RA6963 or equivalent.
(5)
5V single power input. Built-in DC/DC converter for LCD driving.
(6)
Extended temperature type.
(7)
ROHS compliant
(8)
Common and Segment Drivers : SDN8080G or equivalent.


2 MECHANICAL DATA

Dot size  :0.40 (W)  0.40(H) mm
Dot pitch  :0.45(W)  0.45(H) mm
Viewing area  :114.0(W)  64.0(H) mm
Module size(LED back-light) :152.4(W)  104.0(H)  15.0 max (T)mm
