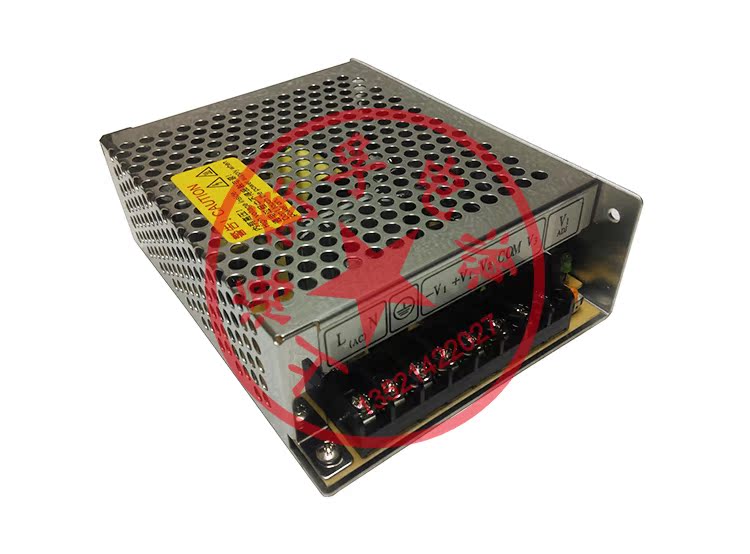

l  高可靠性,高性价比
High reliability, low cost

l  内置式EMI滤波器
Built-in EMI filter

l  100% 满负载老化
100% full load burn-in test

l  F603  129 x 98 x 40(mm)

l  保护功能:过载/短路保护
Protections: overload/ short circuit

l  V1 输出独立于其他几路输出
V1 is isolated from the other outputs

l  5年保修
5 years limited warranty

交流输入电压范围

AC input voltage range

170~264VAC (210~370VDC)

输入启动冲击电流

Inrush current

40A/230V(冷态时)

cold start, 40A/230V

输入漏电流

Input leakage current

<0.7mA/ 230VAC

电网调整率(满载时)

Line regulation (full load)

≤±0.5%

负载调整率

Load regulation

V1: ≤±0.5%, V2,V3: ≤±3% (配置电压模块); ≤±10% (不配置电压模块)

V1: ≤±0.5%, V2,V3: ≤±3% (with regulators); ≤±10% (without)

输出电压可调范围

Output voltage adjust range

V1: 额定输出电压的±5%

V1: ±5% of rated output voltage

输出过载保护

Output overload protection

105~150%

绝缘强度

Withstand voltage

I/P -O/P: 1.5KVAC/1min

I/P -F/G: 1.5KVAC/1min

O/P-F/G: 0.5KVAC/1min

上升时间

Rise time

满负载时为50ms(典型值)

50ms@full load (typical)

保持时间

Hold up time

满负载时为20ms(典型值)

20ms@full load (typical)

工作温度

Operating temperature

-20℃~+50℃

安规标准

Safety standards

设计参照(design meet) GB4943, UL60950, EN60950

电磁兼容标准

EMC standards

设计参照(design meet) GB9254, EN55022 classA

EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

冷却形式

Cooling method

自然冷却

convection

型 号

Model

直流输出

DC Output

纹 波

R&N

效 率

Efficiency

HF35W-T-A

 5V 0.5~3.5A

80mV

69%

12V 0.1~1.2A

120mV

-12V 0.1~0.8A

120mV

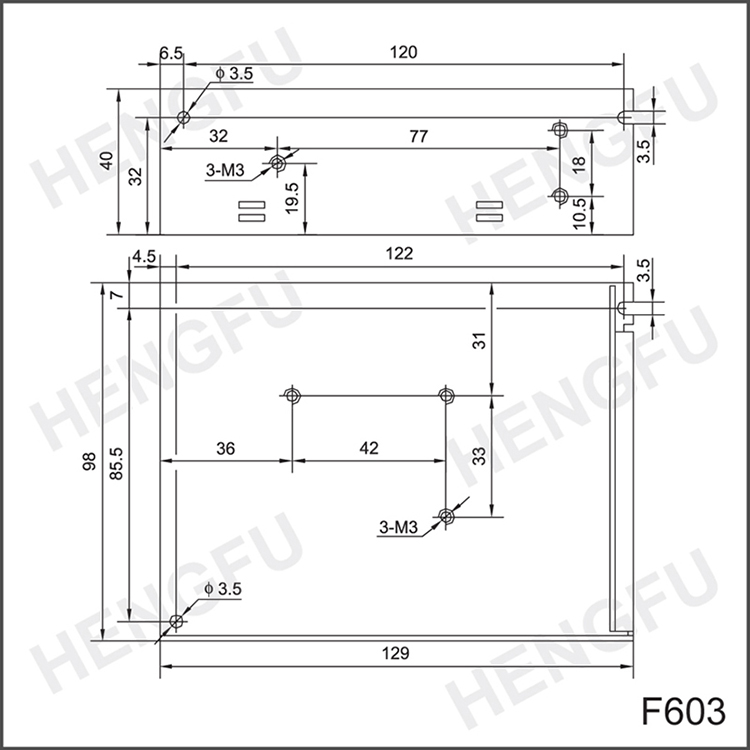

Drawing
